PRODUCTS
Maritime Solutions

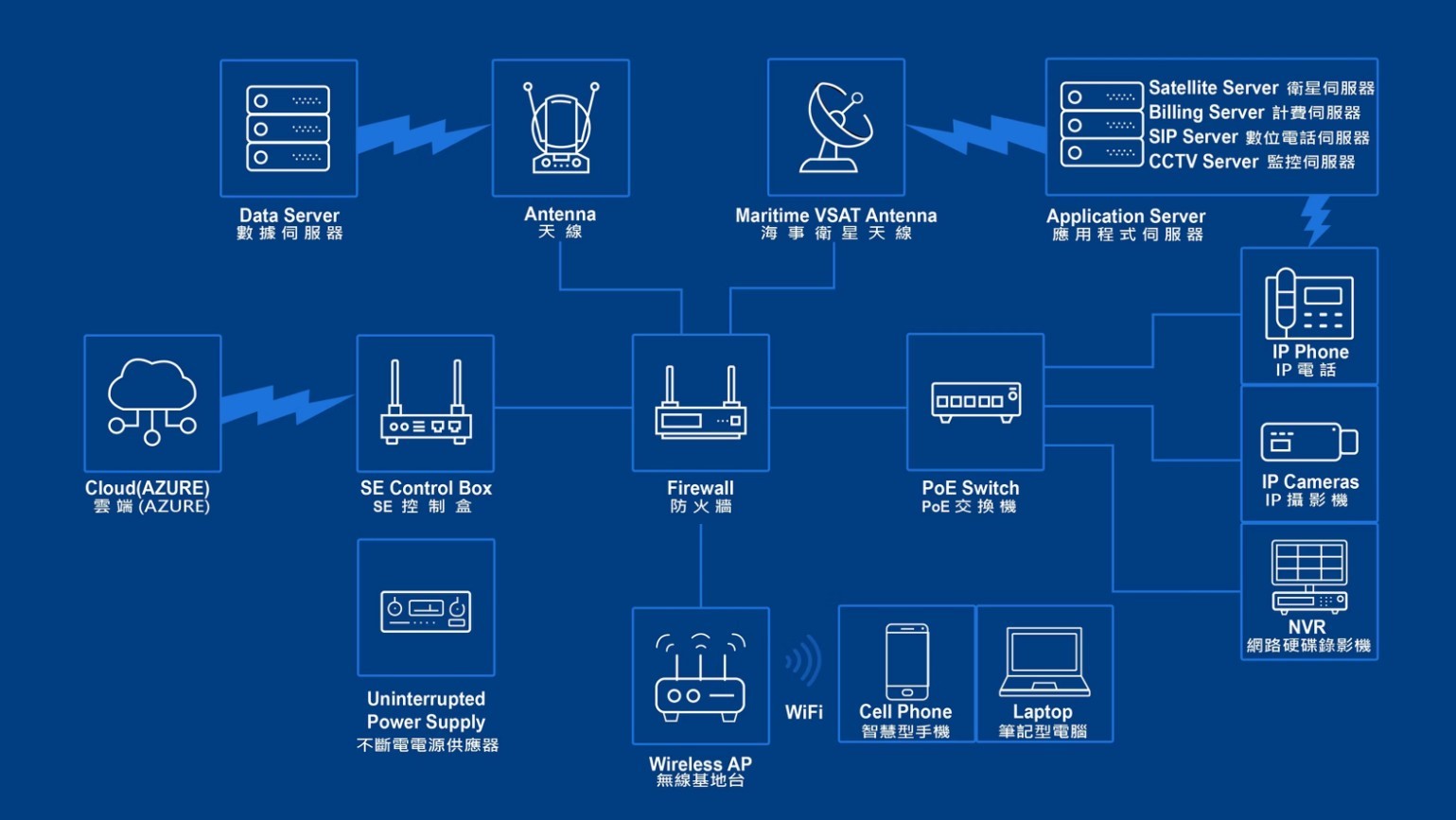

Maritime Networking Architect
Antenna
Stable, durable and high-performance maritime communication core equipment

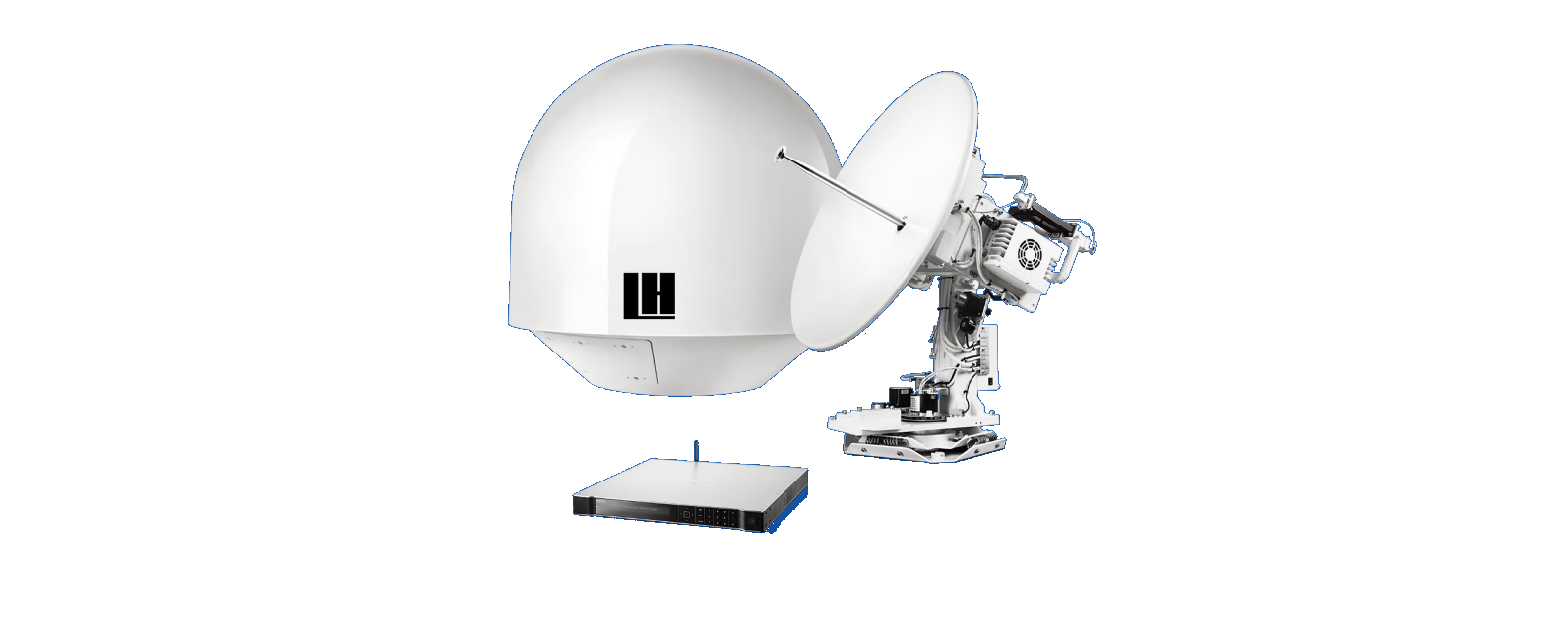

80cm Ku Band Maritime Antenna
LHSAT 80E series (3-axis)
80E (80cm) is a Ku-band 3-axis stabilized VSAT Maritime Antenna System. 80E is one of the E-Series Products among Intellian Product Portfolio. Corresponding with customers’ needs for Light version VSAT terminal. Single Cable Solution, efficient RF Performance.
LHSAT 14C series (3-axis)
S080-14C 0.8m Ku band maritime VSAT antenna build-in with Hughes HX200 satellite Router, combining high-accuracy technology of SINS with beacon tracking and GPS module for fast satellite beam switching, can search, recognize and lock satellite signal automatically while the vessel is on the move. This system can establish and maintain reliable real-time voice, data and images, communication in extreme conditions. Ability for remote monitoring of antenna operating status includes temperature and BUC conditions from network management platform.
Key Features
- X-pol only system (No Co-pol supported)
- Universal PLL LNB / 6W BUC only supported
- 3-axis pedestal design for wide-area ocean crossing
- Compact, Light-weight and Simple package
- Standardized Modular Components Across E-Series
Key Features
- Modular design, with remote status monitoring ability
- Fast pointing accuracy using satellite beacon tracking
- 3-axis pedestal design for cross ocean
- Certified to access the Eutelsat S.A. Space Segment
- Automatic satellite beam switching capability
60cm Ku Band Maritime Antenna
LHSAT 14F series (3-axis)
The S060-14F-I 0.6m Ku band maritime VSAT terminal combines with navigation sensor and signal strength tracking, integrating with GPS data, to ensure the antenna satellite pointing accuracy while vessel is in seafaring, enable reliable communication connectivity in extreme ocean conditions. This maritime VSAT terminal has built in Hughes HX200 satellite router can deliver realtime voice, data and video while on the move, accessing internet connection at sea via the Hughes HX VSAT satellite hub station.
LHSAT 14H series (2-axis)
The S060-14H 0.6m Ku band maritime VSAT terminal adopts 2-axis stability and 3-axis tracking design, combines navigation sensor and signal strength tracking with GPS data, keeping satellite tracking accuracy while vessel is in seafaring. Satellite connectivity is ensured even under extreme ocean conditions. This maritime VSAT terminal has built in Hughes HX200 satellite router can deliver realtime voice, data and video while on the move, accessing internet connection at sea via the Hughes HX VSAT satellite hub station. Suitable for regional offshore and inland maritime applications.
Key Features
- Modular design, highly integrated product designs
- Fast satellite beacon tracking, with quick pointing accuracy
- 3-axis pedestal, design for cross ocean services
- Compact designs and simple installations for regional and inland services
- Automatic satellite beam switching capability
Key Features
- Modular design, highly integrated product designs
- Fast satellite beacon tracking, with quick pointing accuracy
- Search satellite signal automatically
- Cost competitive 2-axis stability and 3-axis tracking design for regional services
- Automatic satellite beam switching capability
L-Band Iridium Maritime Antenna
Compact and incredibly easy to install, it is the pinnacle of L-band satcom performance and reliability.

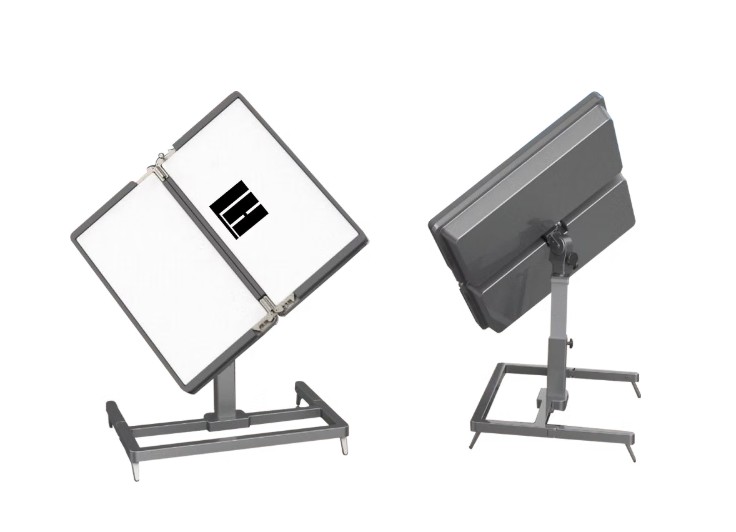

Due to fast, simple and easy deployment, the VHSAT flat portable terminals are suitable for emergency services, disaster recovery, military, security, government and enterprise communication applications.
LHSAT-60P-E
Satellite Acquisition：
Automatically pointing to satellite, level error<0.2°
130W (Auto Searching Satellite)
6W BUC：95W (Access Network)；
130W (Auto Searching Satellite)
16W BUC：165W (Access Network)；
130W (Auto Searching Satellite)
LHSAT-60P-M
Satellite Acquisition：
Manually pointing to satellite, level error<0.2°
6W BUC：95W (Access Network)
16W BUC：165W (Access Network)
Ingress Protection IP66｜Humidity 0 ~ 95%；
96h Salt Fog Test：GJB 150.11A-2009
LHSAT-60F-M the small size with B item
Satellite Acquisition：
Manually pointing to satellite, level error<0.2°
6W BUC：95W (Access Network)
16W BUC：165W (Access Network)
Ingress Protection IP66｜Humidity 0 ~ 95%
